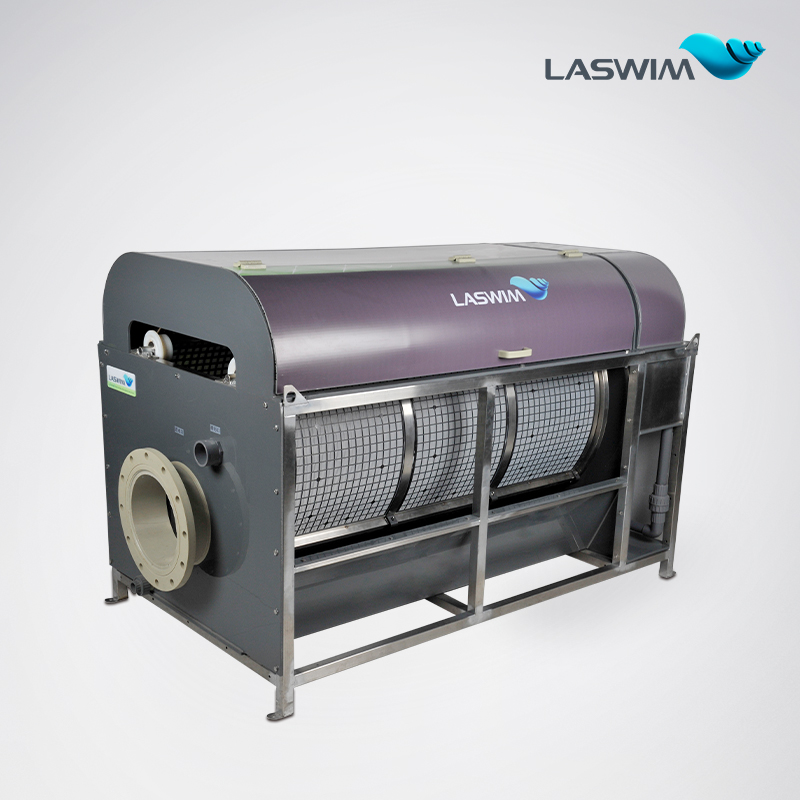

Laswim China Factory Drum Filters With Optimal Filtration For Aquaculture Farms

Features

- International top design and configuration, low power consumption and minimal maintenance

- Modular filter panels, for easy installation and replacement

- When the water level rises due to excessive pollution, automatic backwash is triggered to save energy and reduce consumption

- Use high-pressure backwash (0.6MPA) and low flow nozzle(0.8LPM), saves water and has a significant backwash effect

- Under effective filtration, an average of 1 minute of backwashing is started every 10 minutes (adjustable subject to TSS level of water)

- Superior to traditional sand filter, effective filtrationup to 21 microns (700 mesh)

- Full 6063 aluminum alloy drum structure, with SS 304 or 31 6 frame

Categories :
Contact Now
  • Description

Product Details

Hot Tags:

Rotary drum filter is an outstanding and environmental friendly filtration equipment in recirculating aquaculture. Untreated water is gravity fed to the inside of the drum which has fine screens mounted to its periphery. The water flows through the screens while the solids are trapped by the filter screens, the filtered water flows out of the filter by gravity.

Specifications

Drive Motor Power: 200-1500 Model: RFF/RFM/RFI
Drive Motor Voltage: 220-380 Water saving (0.6MPa/600kpa)
Backwash pump Power: 2200 Backwash pump: 380-3
Total power consumption:75-370 Brand： Laswim Pool Equipment Manufacturer
FOB port：Shenzhen/Zhongshan/Guangzhou Terms of Payment：L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal Color can be customized：Yes
