Features

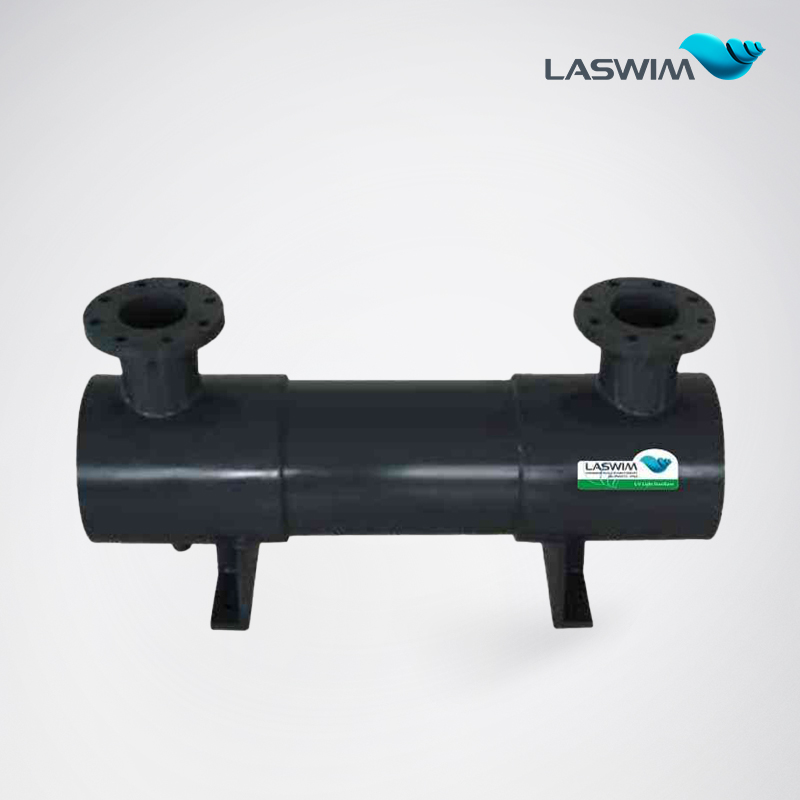

– The reaction chamber is made of high-quality HDPE material, with excellent anti- aging, acid &alkali resistance, and corrosion resistance.
– Safe and efficient, no secondary pollution, no harmful side reactant.
– Adopts imported ultraviolet lamps from Europe or America and high-quality electronic ballasts.
– The control box is made of carbon steel, and stainless steel is optional.
– The control box has the display function of cumulative working time.
– The control box is equipped with lamp working status indicator and fault alarm buzzer.
– The control box uses a built-in fan for cooling.
– The reaction chamber is equipped with a sewage discharge outlet.
– The water inlet and outlet directions of the reaction chamber can be customized.
– UV light intensity monitor, water temperature sensor and water pressure sensor is optional.
– Efficiency of UV disinfection (UV dose: 30mJ/cm2).
Specifications
| Model: WL-UVWP | power supply: | 220-240V,50Hz |
| Design flow rate
(㎥/h) @30mj/c㎡: 5-220 |
UV lamp W/Quantity | 40*1-320*8 |
| Power: 40-2560 | Efficiency of UV disinfection: | UV dose: 30mJ/cm2 |
| Tube life: 10000 | Brand： | Laswim Pool Equipment Manufacturer |
| FOB port：Shenzhen/Zhongshan/Guangzhou | Terms of Payment：L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal | Color can be customized：Yes |
